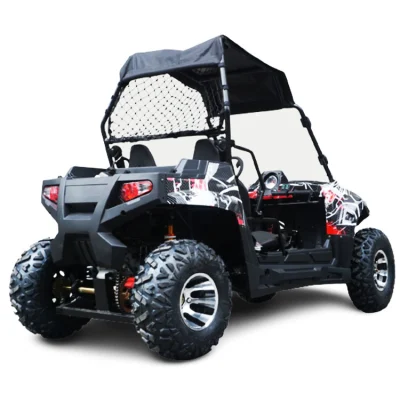

Name UTV SHUTV-001
Engine Single cylinder,4 stroke,CVT
Displacement 200CC 300CC
Compression ratio 10.5.1
Max power 10.5KW/7500RPM
Max torque 17.6NM/5500rpm
Ignition CDI
Cooler model Air cooler
Start model Electric start
Vehicle Size 2300x1300x900mm
Spare tank size 410mmX852mmX220mm
Wheelbase 1650mm
Front Track 1020mm
Rear Track 965mm
Ground clearance 152mm
Seat height 500mm
Net Weight 245kg
Fuel tank capacity 9.5L
Transmission Chain
Brake Foot brake,four disc brake
Suspension Oil shock damping
Direction machine Gearbox
Speed 65km/h
Front tire 21×7-10
Rear tire 20×10-10
Max grade 35 degrees
Min operate temperature -20 Degrees Celsius
Max operate temperature 40 Degrees Celsius
Packing size 2285mmx1290mm8600mm
Container loading 8Units/20Ft 18units/40HQ
