Man-made decoiler
set
1
*Max width 300mm
*Inner diameter -450-550mm
*Max loading capacity 1.5T
*Manual operating type manual expansion to tighten the coil
*Break down drive whole line stop while decoiler idle
2
Feeding Table
set
1
3

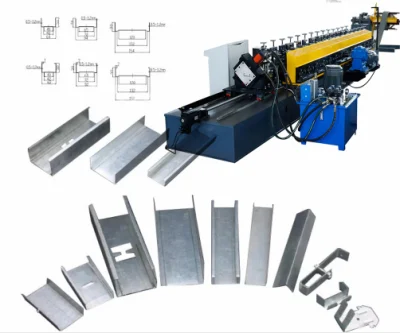

Forming Rollers
set
1
*Forming Station 12
*Forming Rollers material Cr12
*Forming Rollers hard treatment HRC 58-60
*Shaft of roller Diameter 40mm
*Shaft material 40Cr,heat treatment, refine grinded
*Machine frame: steel welding
*Main sidewall thickness 20mm
*Machine driven by universal joints via gearbox
*Roll forming motor 5.5kw with frequency inverter controller
*Gearbox RV worm gearbox
4
Hydraulic cutting with hole punching
set
1
*Hydraulic pump stand 1 set
5
Profile Discharger
set
1
*Driven machinical Auto Head
*Operation Full automatic along with forming machine
6
Electric Control system
set
1
Delta control system
